![Q45F三通四密封球阀](/UpFile/201906/2019061045037889.jpg)
产品名称:Q45F三通四密封球阀
产品标签:球阀,三通四密封球阀
更新时间:2019/6/10 12:26:28
上一个产品: Q44/Q45硬密封三通球阀
下一个产品:Q46F不锈钢四通球阀
在线客服:
在线订购:在线订购
产品详情
序号 |
质料标准 |
质料牌号 |
||||
碳钢 |
不锈钢 |
|||||
零件名称 |
GB |
ASTM |
GB |
ASTM |
||
01 |
排污塞 |
2Cr13 |
A276-410 |
1Cr18Ni9Ti |
F304/F316/ |
|
02 |
阀体 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti |
CF8/CF8M/ |
|
03 |
阀座O形圈 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
|
04 |
阀座弹簧 |
17-7PH |
17-7PH |
17-7PH |
17-7PH |
|
05 |
阀座 |
PTFE;PPL |
PTFE;PPL |
PTFE;PPL |
PTFE;PPL |
|
06 |
阀座支承圈 |
25镀铬 |
A105镀铬 |
1Cr18Ni9Ti |
F304/F316/ |
|
07 |
球体 |
1Cr18Ni9Ti |
304 |
1Cr18Ni9Ti |
F304/F316/ |
|
08 |
球体键 |
40Cr |
40Cr |
1Cr17Ni2 |
1Cr17Ni2 |
|
09 |
上阀杆 |
2Cr13 |
A276-410 |
1Cr18Ni9Ti |
F304/F316/ |
|
10 |
侧盖 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti |
CF8/CF8M/ |
|
11 |
垫圈 |
氟橡胶;PTFE;金属夹石墨 |
17-7PH |
|||
12 |
螺母 |
45 |
A194-2H |
0Cr18Ni |
A194-8M |
|
13 |
双头螺柱 |
35CrMoA |
A193-B7 |
1Cr17Ni2 |
A193-B8M |
|
14 |
垫圈 |
氟橡胶;PTFE;金属夹石墨 |
||||
15 |
阀盖 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti |
CF8/CF8M/ |
|
16 |
止推轴承 |
PTFE |
PTFE |
PTFE |
PTFE |
|
17 |
压环 |
25镀铬 |
A105镀铬 |
1Cr18Ni9Ti |
F304/F316/ |
|
18 |
填料O形圈 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
|
19 |
阀杆O形圈 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
|
20 |
阀杆填料 |
石墨 |
||||
21 |
填料压盖 |
25镀铬 |
A105镀铬 |
1Cr18Ni9Ti |
F304/F316/ |
|
22 |
螺钉 |
35CrMoA |
A193-B7 |
1Cr17Ni2 |
A193-B8M |
|
23 |
支架 |
WCB |
WCB |
WCB |
WCB |
|
24 |
键 |
40Cr |
40Cr |
1Cr17Ni2 |
1Cr17Ni2 |
|
25 |
盲板 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti |
CF8/CF8M/ |

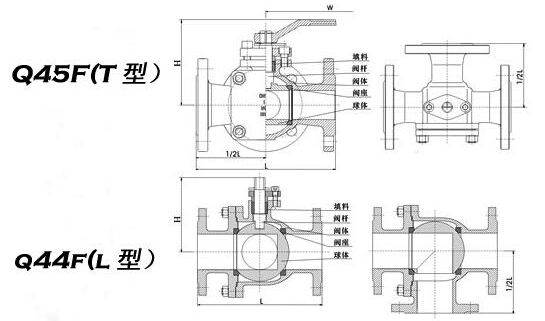

150Lb-300Lb |
|||||||||||||||
尺寸 |
inch |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
2-1/2" |
3" |
4" |
5" |
6" |
8" |
10" |
12" |
DN |
15 |
20 |
250 |
40 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
L |
mm |
140 |
160 |
180 |
200 |
220 |
240 |
260 |
280 |
320 |
380 |
440 |
540 |
- |
- |
H |
mm |
90 |
95 |
105 |
115 |
135 |
140 |
155 |
185 |
210 |
275 |
305 |
335 |
- |
- |
W |
mm |
140 |
140 |
155 |
250 |
250 |
350 |
350 |
420 |
700 |
1000 |
1300 |
1800 |
- |
- |
1/2(L) |
mm |
70 |
80 |
90 |
100 |
110 |
120 |
130 |
140 |
160 |
190 |
220 |
270 |
- |
- |
1.6MPa-4.0MPa |
|||||||||||||||
尺寸 |
inch |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
2-1/2" |
3" |
4" |
5" |
6" |
8" |
10" |
12" |
DN |
15 |
20 |
250 |
40 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
mm |
140 |
160 |
180 |
200 |
220 |
240 |
260 |
280 |
320 |
380 |
440 |
540 |
- |
- |
|
L |
mm |
90 |
95 |
105 |
115 |
135 |
140 |
155 |
185 |
210 |
275 |
305 |
335 |
- |
- |
H |
mm |
140 |
140 |
155 |
250 |
250 |
350 |
350 |
420 |
700 |
1000 |
1300 |
1800 |
- |
- |
W |
mm |
70 |
80 |
90 |
100 |
110 |
120 |
130 |
140 |
160 |
190 |
220 |
270 |
- |
- |
![]() |
注:以上的产品先容,参数,图片,数据仅用于参考,若是需更准确的资料请咨询公司手艺效劳热线:18117208829
